Temperature & Humidity Chambers | Back to Top
Model Interior Volume Temperature Range Humidity Range
EVA-8A
EVT-14A
EVT-32A
225 L (8 cu. ft.)
408 L (14 cu.ft.)
900 L (32cu. ft.)
-40 - 150ºC None
EVL-8A
EVL-14A
EVL-32A
225 L (8 cu. ft.)
408 L (14 cu.ft.)
900 L (32cu. ft.)
-60 - 150ºC
EVH-8A
EVH-14A
EVH-32A
225 L (8 cu. ft.)
408 L (14 cu.ft.)
900 L (32cu. ft.)
-40 - 100ºC 20 - 98%
EVX-8A
EVX-14A
EVX-32A
225 L (8 cu. ft.)
408 L (14 cu.ft.)
900 L (32cu. ft.)
-60 - 100ºC

Interior Dimenions
Interior Volume Width x Depth x Height
225 L (8 cu. ft.)
408 L (14 cu.ft.)
900 L (32cu. ft.)
50 x 60 x 75 cm
60 x 80 x 85cm
100 x 90 x 100cm
(19.7 x 23.6 x 29.5 in)
(23.6 x 31.5 x 33.5 in)
(39.4 x 35.5 x 39.4 in)






Industrial Ovens | Back to Top
Model Temperature Range Interior Volume Interior Dimension Typer
EOH3 45 - 200°C 91 L
(3.2 cu. ft.)
45 x 45 x 45 cm
(17.7 x 17.7 x 17.7 in)
Horizontal
EOH7 219 L
(7.6 cu. ft.)
60 x 60 x 60 cm
(23.6 x 23.6 x 23.6 in)
EOH18 512 L
(18.1 cu. ft.)
80 x 80 x 80 cm
(31.5 x 31.5 x 31.5 in)
EOH35 1000 L
(35.3 cu. ft.)
100 x 100 x 100 cm
(39.4 x 39.4 x 39.4 in)
EOV11 324 L
(11.4 cu. ft.)
60 x 60 x 90 cm
(23.6 x 23.6 x 35.4 in)
Vertical
EOV15 432 L
(15.3 cu. ft.)
60 x 60 x 120 cm
(23.6 x 23.6 x 47.2 in)
EOH27 768 L
(27.1 cu. ft.)
80 x 80 x 120 cm
(31.5 x 31.5 x 47.2 in)






Fast Change Rate Temp Chamber | Back to Top
Product Info
Model Interior Volume Interior Dimension Temperature Range
EVS-5 5 cu. ft. 56 x 68 x 38cm -35°C - 177°C
EVS-11 11 cu. ft. 56 x 68 x 76cm
EVS-27 27 cu. ft. 66 x 66 x 177cm
EVS-35 35 cu. ft. 61 x 132 x 122cm
EVS-85 85 cu. ft. 122 x 127 x 152m
ETS-15 15 cu. ft. 76 x 76 x 76cm -60°C - 177°C
ETS-34 34 cu. ft. 99 x 99 x 99cm
ETS-46 46 cu. ft. 109 x 109 x 109cm
ETS-64 64 cu. ft. 121 x 121 x 121cm
ETS-84 84 cu. ft. 140 x 140 x 140cm

Product Info Performance Example
Temperature Range Temperature Range Temperature Change Rate
-35°C - 177°C -20°C - 80°C 5°C ~ 20°C/Min
-60°C - 177°C -54°C - 80°C 5°C ~ 15°C/Min




Thermal Shock Test Chamber | Back to Top
Product Info Performance
Model Interior Dimension Temperature Range Heat up in X min Cool down in X min
YTST-056 40 x 35 x 44cm -75°C - 200°C 150°C in 30 min -65°C in 90 min
YTST-087 50 x 35 x 50cm
YTST-126 60 x 35 x 60cm

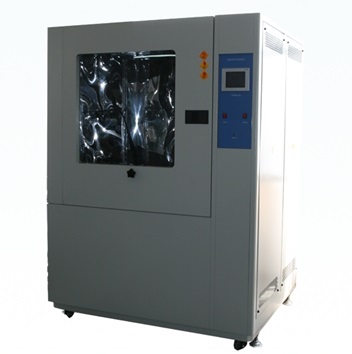

Dust Test Chamber | Back to Top
Model Interior Dimension Test Type Testing Temperature range Humidity Range
YSDT-1000-F 100 x 100 x 100cm F1 F2 20°C ± 15°C 45 - 85%
Concentration of dust
Above 60000 Above 3000
YSDT-1000-C(IEC-529) 100 x 100 x 100cm F3 IEC60529
C1 C2
Concentration of dust
Above 100 Above 5000 Above 100

Testing Time
Testing Type Swirl Time Rest Time Total Time Flow rate of dust
F1 5 seconds 15 minutes 5 hours No Limited
F2 8 hours
F3
IEC60529 (C1) 2 hours 5m/s
IEC60529 (C2) No Feature 6 hours 10m/s






Aging Test Chamber | Back to Top
Product Info Performance
Model Interior Dimension Temperature Range Temperature uniformity Temperature resolution Heat up time
YTAT-101 45 x 50 x 45cm Room temperature + 10°C to 200°C (300°C) ±2°C - ±3°C 0.1°C 30 minutes
YTAT-216 60 x 60 x 60cm 40 minutes

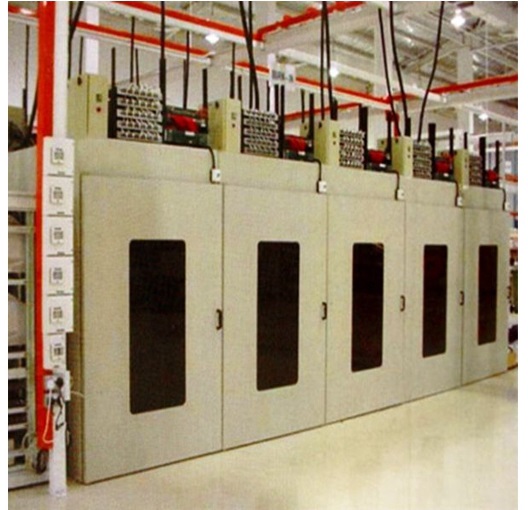

Burn-in Tester | Back to Top
Model : YBRT
Feature
Interior Dimension Customization
Temperature Range Room Temperature + 10°C to 80°C
Temperature Fluctuation ±0.3°C
Indication Resolution ±0.1°C
Power Supply 380V 60/50Hz

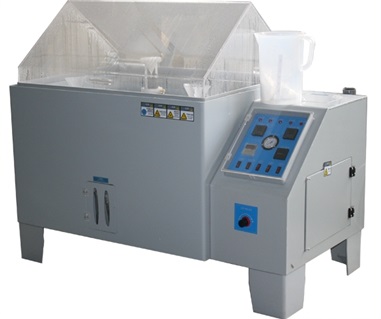

Salt Spray Tester | Back to Top
Product Info Temperature Range
Model Interior Dimension Inside Chamber Air Salt water
YSST-108 60 x 40 x 45cm Room temp. to 50°C,±0.5°C Room temp. to 63°C,±0.5°C Room temp. to 50°C,±0.5°C
YSST-270 90 x 50 x 60cm
YSST-600 120 x 50 x 100

Feature for all model
Saturated Air Pressure(Kg/m) 0.8 - 2.0
Spray Volume(m/80cm/hr) 0.5 - 3.0
PH Salt 6.5 - 7.2
Copper acetate 3.0 - 3.2

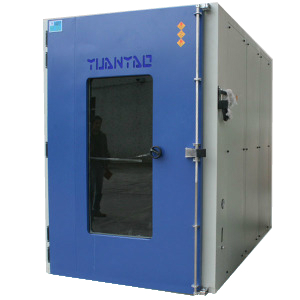

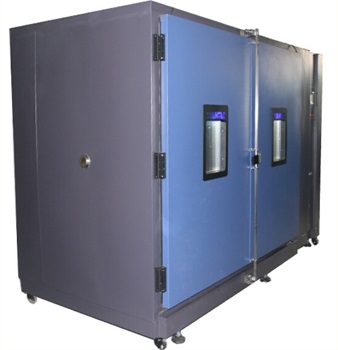

Walk-In Teamperature & Humidity Test Chamber | Back to Top
Model Interior Volume Interior Dimension Temperature Range Humidity
EVWP-176 176 cu. ft. 152.4 x 152.4 x 213.4cm -35°C - 80°C
or
-60°C - 85°C
None
or
30 - 95%
EVWP-346 346 cu. ft. 213.4 x 213.4 x 213.4cm
EVWP-572 572 cu. ft. 274.3 x 274.3 x 213.4cm
EVWP-1018 1018 cu. ft. 365.8 x 365.8 x 213.4cm
EVWS-176 176 cu. ft. 152.4 x 152.4 x 213.4cm -35°C - 177°C
or
-60°C - 177°C
None
or
30 - 95%
EVWS-346 346 cu. ft. 213.4 x 213.4 x 213.4cm
EVWS-572 572 cu. ft. 274.3 x 274.3 x 213.4cm
EVWS-1018 1018 cu. ft. 365.8 x 365.8 x 213.4cm

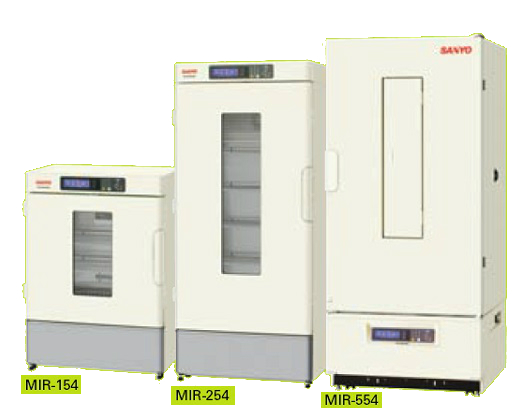

Cooled Incubator | Back to Top
With wide temperature control range from -10°C to +60°C, Panasonic Cooled Incubators allow a full range of precise experiments including environmental tests to microorganism cultures and plant germination tests.
Model Interior Dimension Interior Volume Circulation system
MIR-154 62 x 36.8 x 55.5cm 4.3 cu. ft. 3
MIR-254 62 x 36.8 x 108.8cm 8.4 cu. ft. 5
MIR-554 64 x 55 x 116cm 14.3 cu. ft.

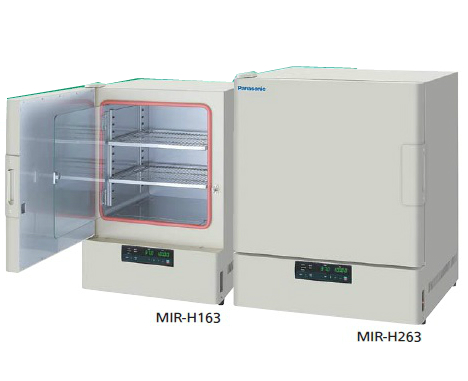

Heated Incubator | Back to Top
Heated Incubators provide a precise and stable incubation environment
  • A wide range of applications including biological cultures and environmentalstudies
  • Accurate temperateure control by Microprocessor PID control system and Air Jacket system
  • Operation timer function
  • Alarms andself diagnostic function secure safe operation
Model Interior Dimension Interior Volume Circulation system
MIR-H163 45 x 46 x 45cm 3.3 cu. ft. Natural convection
MIR-H263 60 x 51 x 50cm 5.4 cu. ft

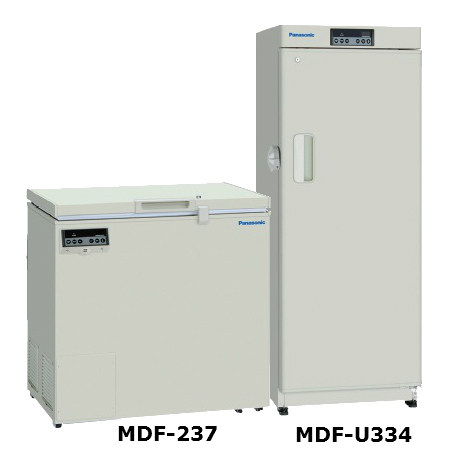

Freezer | Back to Top
Panasonic Freezers offer the outstanding reliability and performance required in a wide variety of storage and research applications.
  • Cooling performance: -30°C (AT: 35°C, no load)
  • Control range: -20°C to -30°C

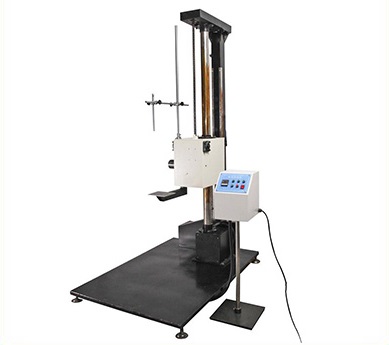

Drop Tester | Back to Top
Model Type Test height Overall weight (Approx) Baseplate size
YDT-150A Single arm 30 - 150cm 480kg 150 x 100 x 2
YDT-150B 150 - 300cm
YDT-200A 30 - 200cm 550 kg
YDT-200B 200 - 300cm




No information Right Now
